VPS Firewall

Overview

The VPS Firewall feature in the Virtualizor panel provides an advanced layer of security for your Virtual Private Server (VPS). It allows you to create and manage firewall rules/plans that control the traffic flowing in and out of your VPS, ensuring that your server is protected from unauthorized access and potential threats. It will work for VPS level firewall.

The VPS Firewall in the Virtualizor panel is a powerful tool that helps you safeguard your vps server by controlling network traffic. By setting up customized firewall rules, you can prevent unauthorized access and protect your VPS from potential threats, ensuring a secure and stable environment for your applications and data.

Note
This feature is available for all enduser now.
Admin can also create a vps firewall plans for everyone from admin panel.
You can increase firewall_rule_limit in /usr/local/virtualizor/universal.php


VPS Firewall Config

To Apply the firewall Config Rules by VPS Plan, Users and VPS. To navigate this page you can go VPS Firewall --> VPS Firewall Config.

Apply By Plan

To apply the firewall rules to the vpses that are using same vps plans you can go with below screenshot steps.

VPS Firewall Configuration Plan

Apply By Users

To apply the firewall rules to the users vpses you can go with below screenshot steps.

VPS Firewall Configuration Users

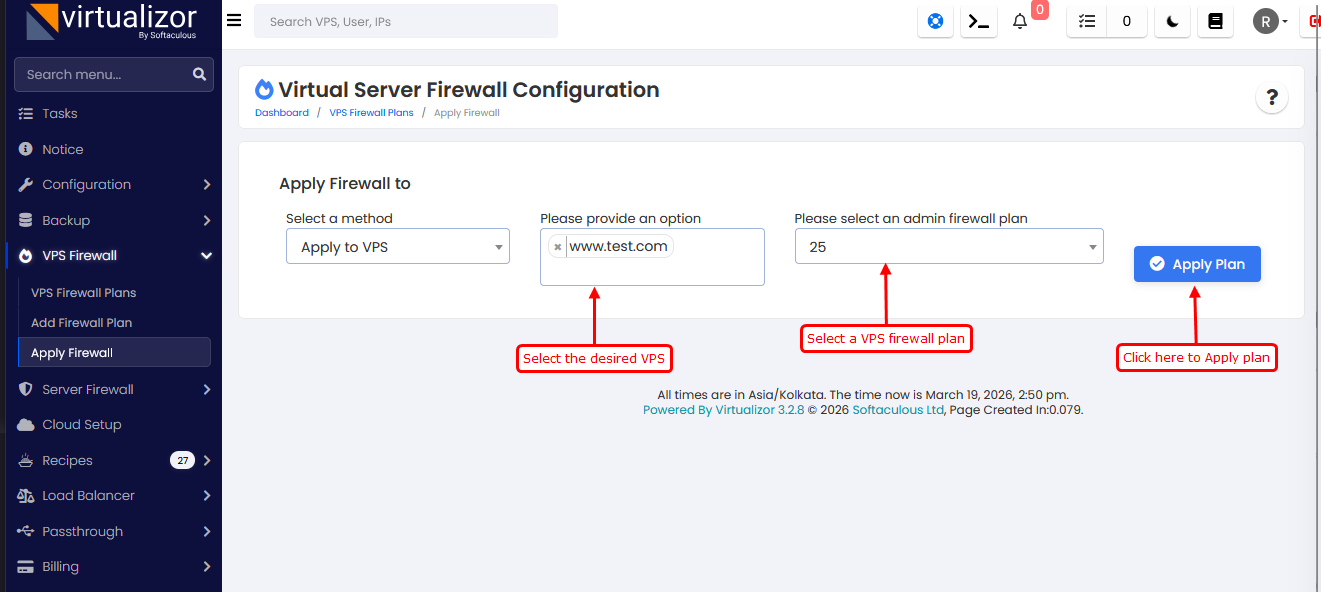

Apply To VPS

To apply the firewall rules to the vps you can go with below screenshot steps.

VPS Firewall Configuration VPS

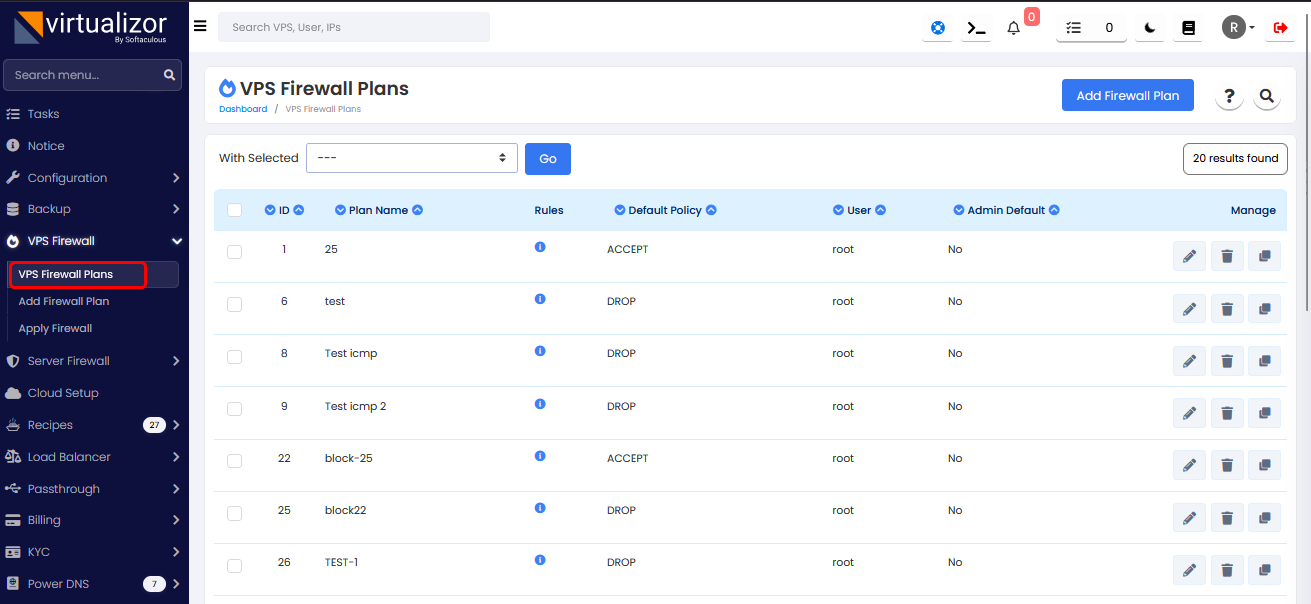

List Firewall Plans

To list the vps firewall plans you can navigate to VPS Firewall --> List Firewall Plans. All firewall plans created by Admin and Enduser(Cloud Users) will list here.

List Firewall Plans

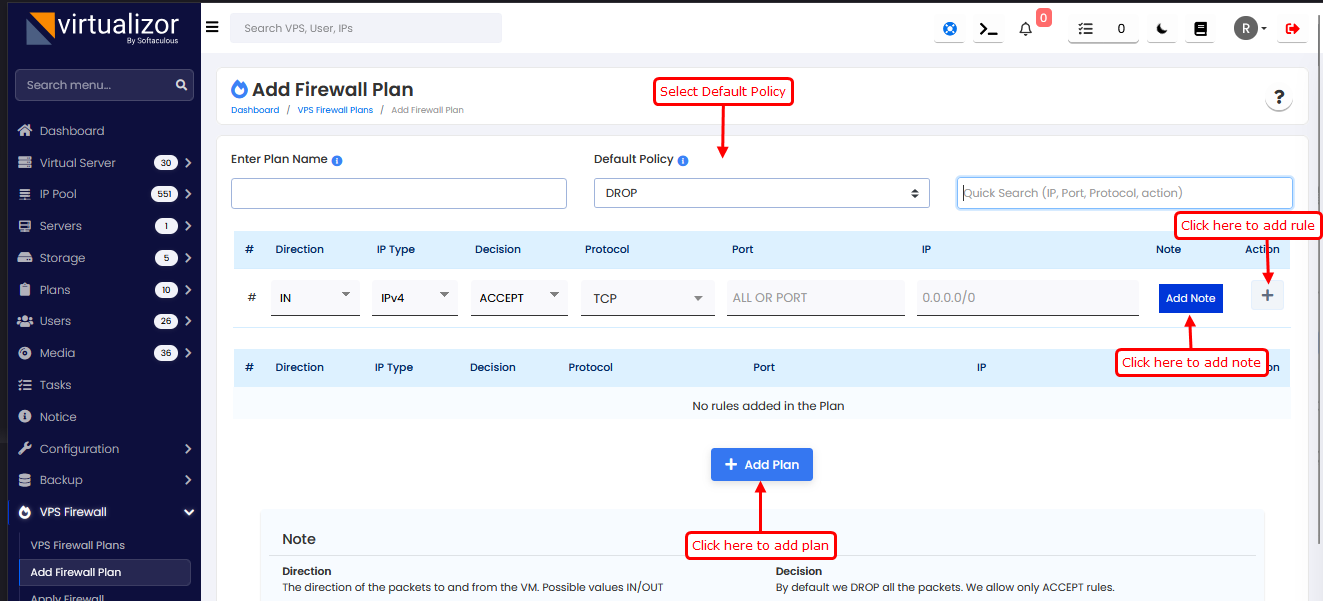

Add Firewall Plan

To add/create firewall plans you can navigate on VPS Firewall --> Add Firewall Plan.

Note
'Make these rules default' option list below in the screenshot is not available at the moment.

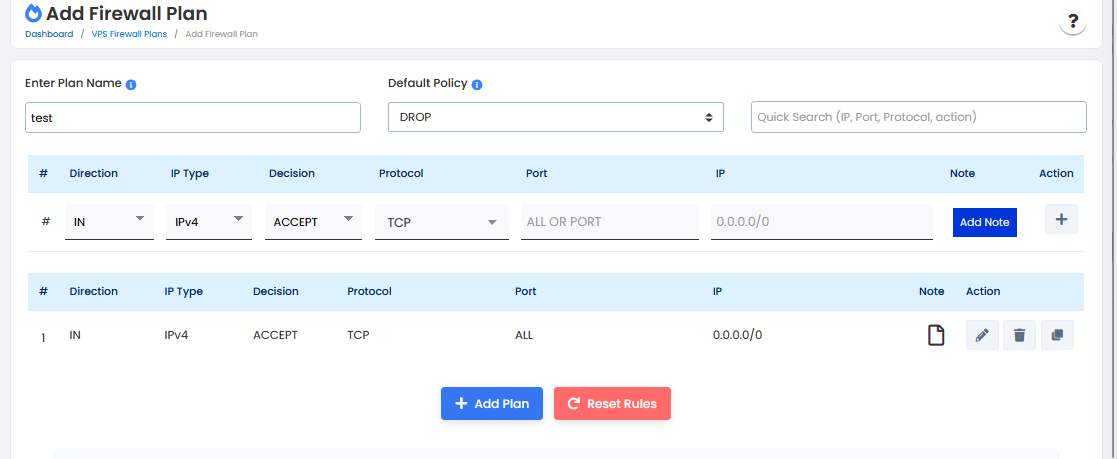

Add Firewall Plan

Terminology

  • Direction : The direction of the packets to and fro the VM. Possible values IN/OUT
  • IP Type : Version of the IP protcol. Currently IPv4 only.
  • Decision : By default we DROP all the packets. We allow only ACCEPT rules.
  • Protocol : TCP, UDP, GRE, ICMP Protocols that are supported.
  • S Port : For incoming packets within the VM Source Port will the port of the incoming IP. Viceversa for the Out going Packets.(Valid Entries : Port number between 65535 or NONE for all the Ports)
  • D Port : For outgoing packets the VM Destination Port will the port of the Destination IP. Viceversa for the Out going Packets. (Valid Entries : Port number between 65535 or NONE for all the Ports)
  • Source IP : IP for which rule is to be applied. (Valid Entries : Individual IP address or 0.0.0.0/0 for all IPs)


Example :

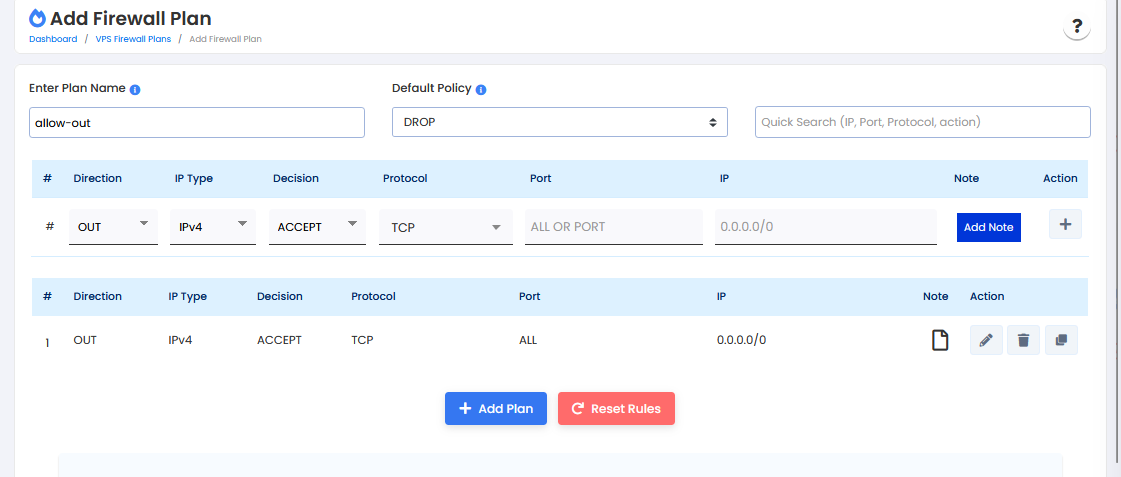

To allow all outgoing  connections for TCP.


 Explanation:

1. Default Policy: Drop All Connections
    * This means that all incoming connections are blocked by default.

2. Allow outgoing connections (This rule should be clubbed with the other following examples, viz allowing SSH connections) :
    *Direction: OUT (outgoing traffic)
    *IP Type: IPV4
    *Decision: ACCEPT (allow the connection)
    *Protocol: TCP
    *SPort (Source Port): None (not specified)
    *DPort (Destination Port) : None (not specified)
    *Source IP: 0.0.0.0/0 (any IP address can initiate the connection)

This will allow all outgoing connections from within VPS.

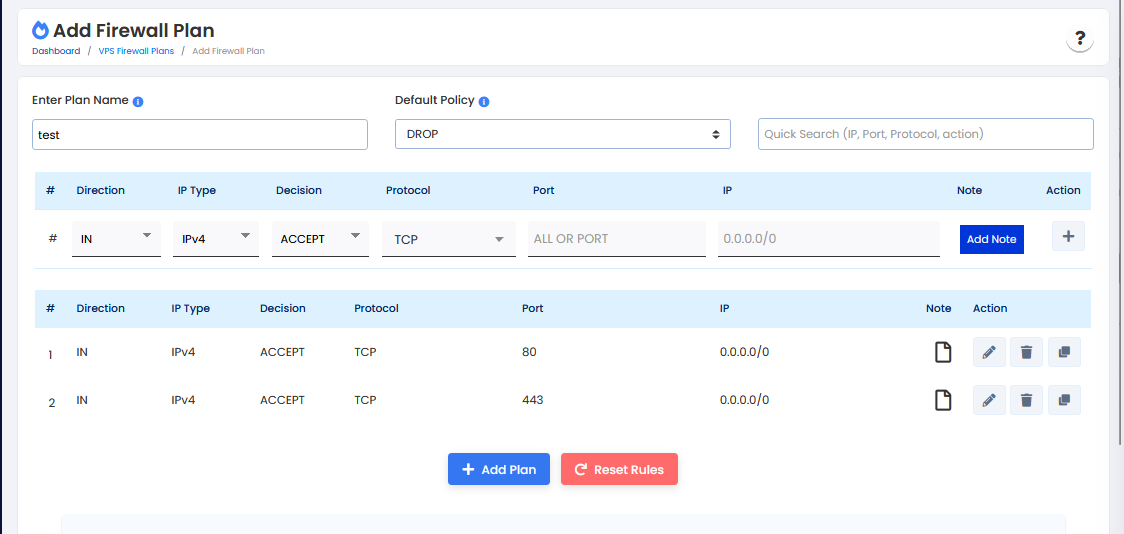

To allow yum install in specific VPS.


Explanation:

1. Default Policy: Drop All Connections
    * This means that all incoming connections are blocked by default.

2. Exception for package installation :
    *Direction: IN (incoming traffic)
    *IP Type: IPV4
    *Decision: ACCEPT (allow the connection)
    *Protocol: TCP
    *SPort (Source Port): 80 and 443  (the port used for package installation)
    *DPort (Destination Port) : None (not specified)
    *Source IP: 0.0.0.0/0 (any IP address can initiate the connection)

This will block all connection and only allow incoming traffic for port 80 and 443 from VPS .

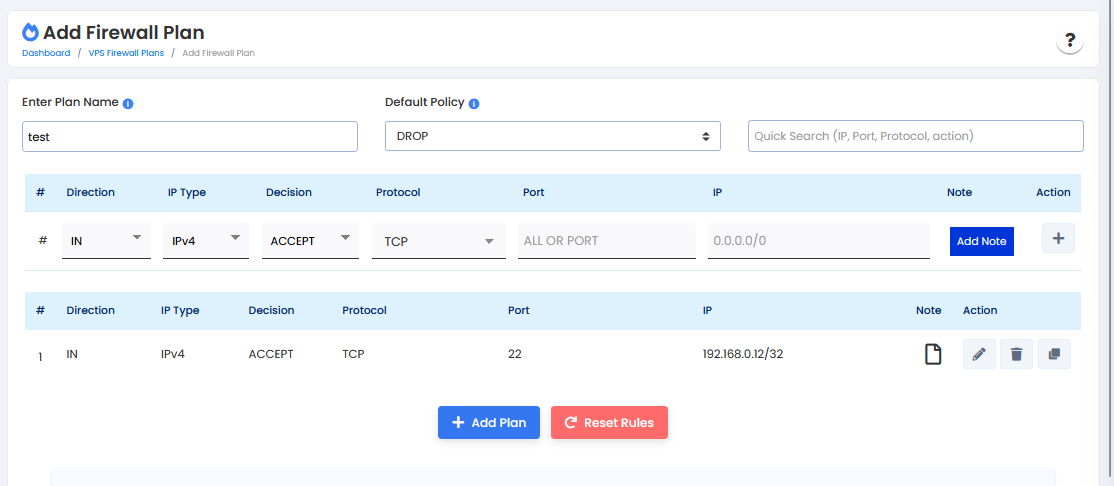

To allow specific IP for SSH


Explanation:

1. Default Policy: Drop All Connections
    * This means that all incoming connections are blocked by default.

2. Exception for SSH Traffic:
    *Direction: IN (incoming traffic)
    *IP Type: IPV4
    *Decision: ACCEPT (allow the connection)
    *Protocol: TCP
    *SPort (Source Port): None (not specified)
    *DPort (Destination Port) : 22 (the port used for SSH)
    *Source IP: 0.0.0.0/0 (all IP address can initiate the connection)
This will block all connections and allow only SSH access for everyone; if a specific IP address is mentioned, only that address will be granted access.

To Enable Ping from VPS


Explanation:

1. Default Policy: Drop All Connections
    * This means that all incoming connections are blocked by default.

2. Exception for ICMP Protocol Traffic:
    *Direction: IN (incoming traffic)
    *IP Type: IPV4
    *Decision: ACCEPT (allow the connection)
    *Protocol: ICMP
    *SPort (Source Port): None (not specified)
    *DPort (Destination Port) : None (not specified)
    *Source IP: 0.0.0.0/0 (to allow for all ip address)
This will allow to ping  from VPS. to all, if a specific IP address is mentioned, only that address will be allowed to ping from vps.

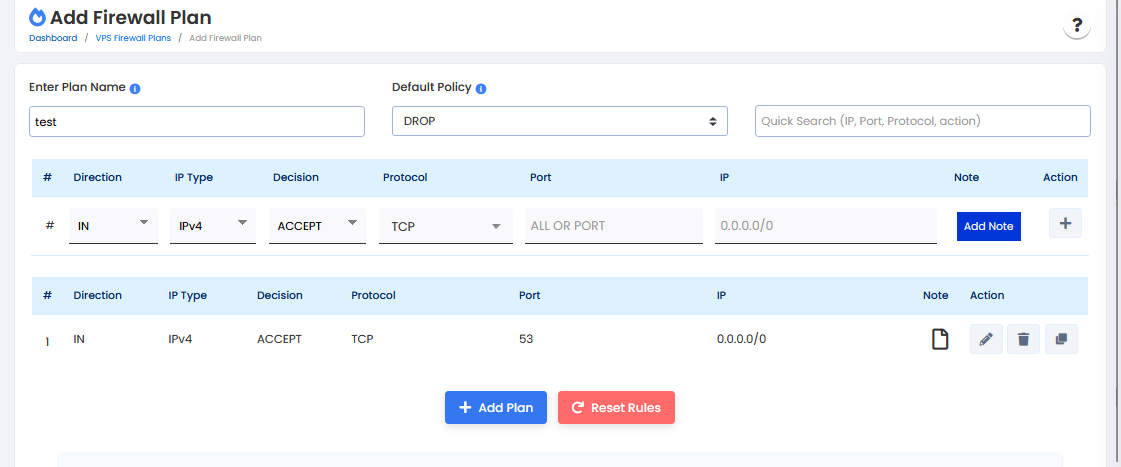

To allow name resolution from VPS


Explanation:

1. Default Policy: Drop All Connections
    * This means that all incoming connections are blocked by default.

2. Exception to allow DNS (Domain Name System) services:
    *Direction: IN (incoming traffic)
    *IP Type: IPV4
    *Decision: ACCEPT (allow the connection)
    *Protocol: UDP
    *SPort (Source Port): 53 (the port used for DNS)
    *DPort (Destination Port) : None (not specified)
    *Source IP: 0.0.0.0/0 (To allow all IP address)

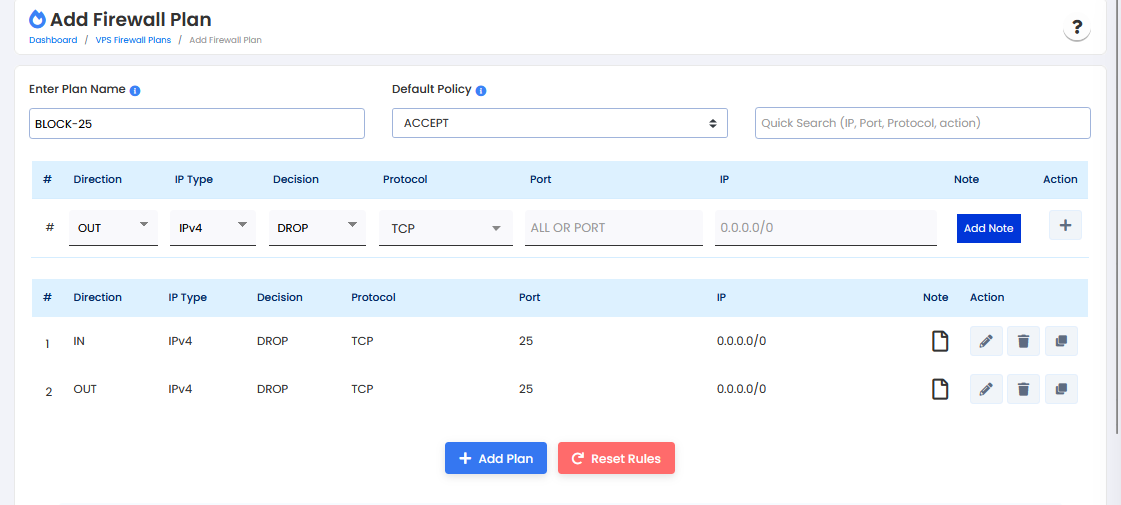

To block SMTP port for VPS

block-25

Explanation:

1. Default Policy: ACCEPT All Connections
    * This means that all incoming connections are ACCEPT by default.

2. Exception to Block Email services :
    *Direction: IN (Incoming traffic)
    *IP Type: IPV4
    *Decision: DROP (Drop the connection)
    *Protocol: TCP
    *SPort (Source Port): None (not specified)
    *DPort (Destination Port) : 25 (Port used for Email)
    *Source IP: 0.0.0.0/0 (To allow all IP address)

    *Direction: OUT (Outgoing traffic)
    *IP Type: IPV4
    *Decision: DROP (Drop the connection)
    *Protocol: TCP
    *SPort (Source Port): 25 (Port used for Email)
    *DPort (Destination Port) : None (not specified)

    *Source IP: 0.0.0.0/0 (To allow all IP address)
